High speed glass washing machine

High speed glass washing machine

Glass washing machine used for high-speed edging or seaming lines, it can work in glass laminating lines too.

Product Features:

  • A set of pre rinse with a tank to supply water.

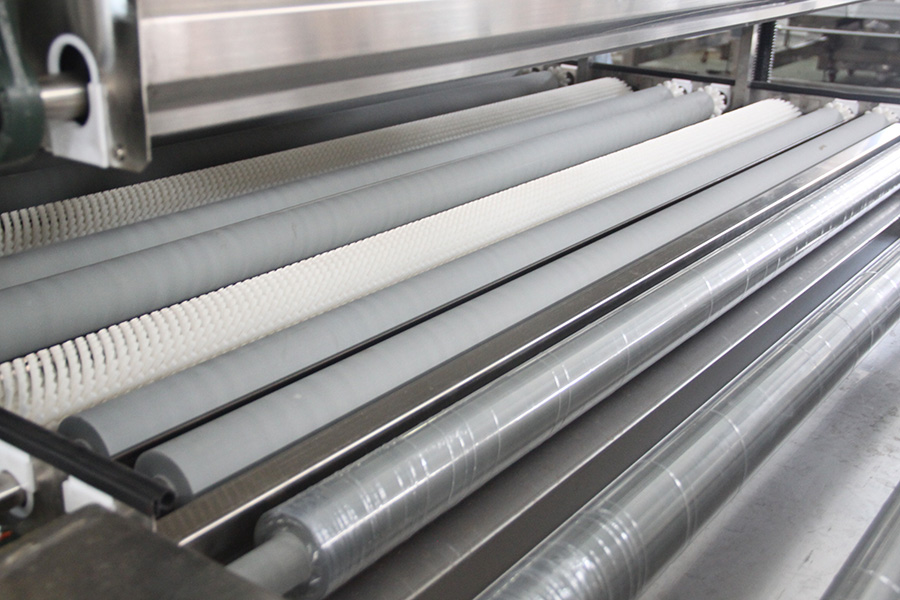

  • Four pairs of brushes, three tanks with heaters.
  • Quick connect for tank and pipe.
  • Last two upper brushes are for Low-E glass.
  • Three air of air knives(two straight and one slanted).
  • High speed, max. is 16m/min.
  • Steel and aluminum chassis.
  • Excellent water proof system.

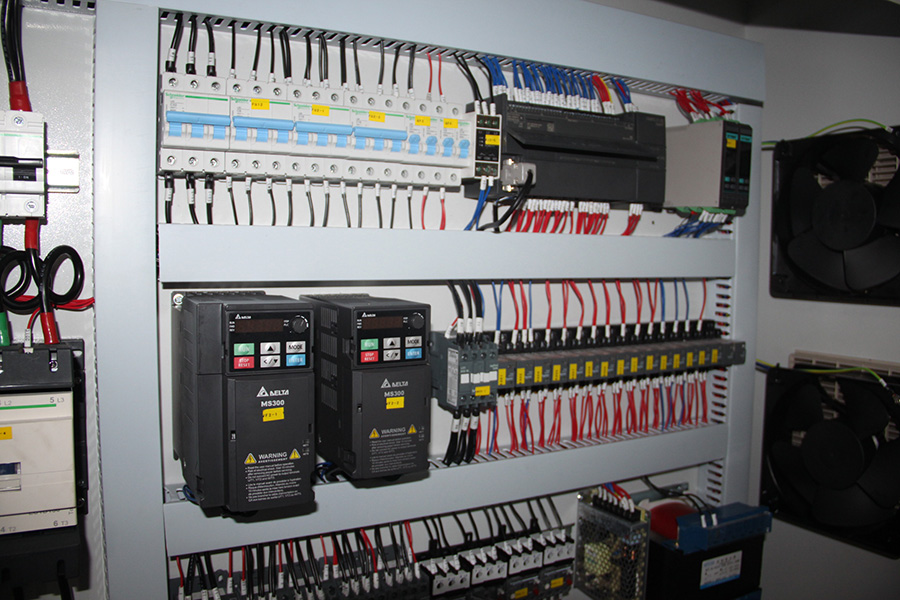

  • PLC and touch screen can be equipped for synchronous speed and thickness.
  • Side covers hang on and easy to take down.
  • Double blowers(15/11KW each), when glass size under 1300mm, one blower will stop automatically to save electricity.
  • This washer can be used before furnace.
  • Customized size is available.

Technical Parameters

Max. Glass Size2500 mm
Min. Glass Size400*400 mm
Glass Thickness3~25 mm
Working Speed0.6~16 M/MIN
Blower Power15KW*2
Total Power52 KW
Brush4( 2 are soft brushes for Low-E glass) pairs
Water Tank4 units
Water heater power6KW *3
Air Knives3 pairs ( 2 pairs are straight and one pair is slanted)
Table Height900±50 mm
