TWTC-2000P Disc brush glass washing machine

TWTC-2000P Disc brush glass washing machine

Washer used before coating line or digital printing line

  • 42f

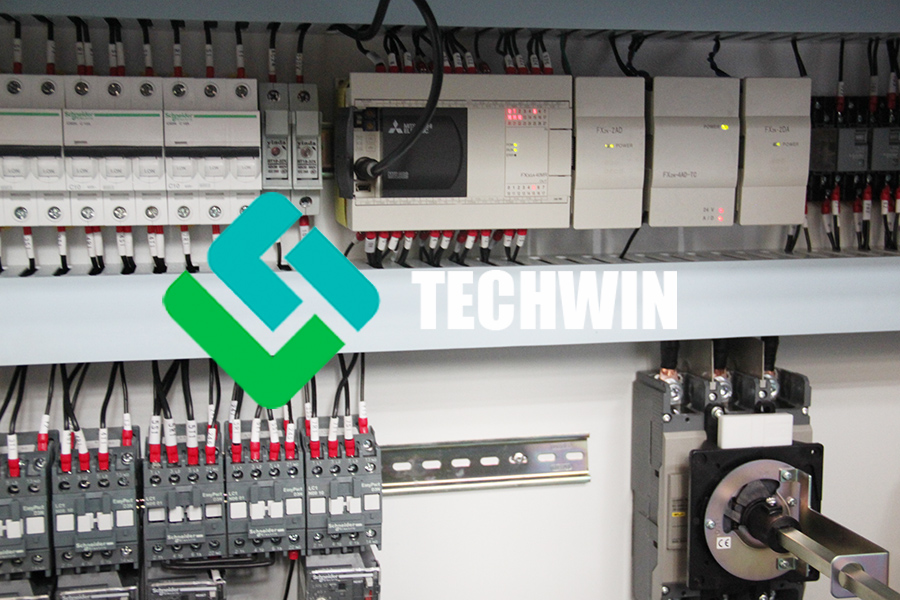

  • IMG 0140

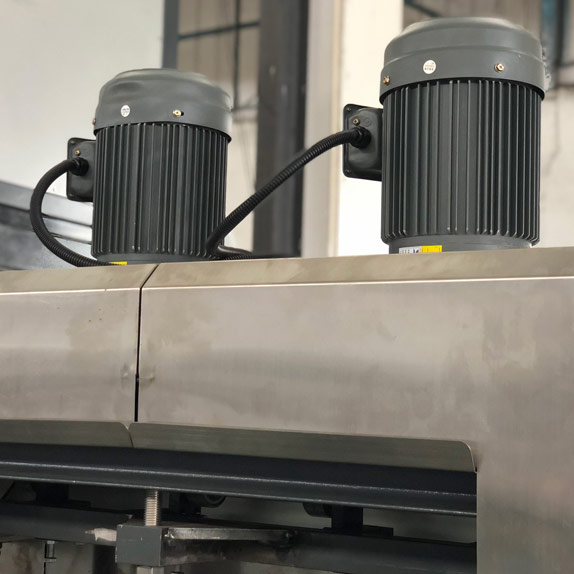

  • Glass Washing Machine TWTC 2000P 3
  • Glass Washing Machine TWTC 2000P 4

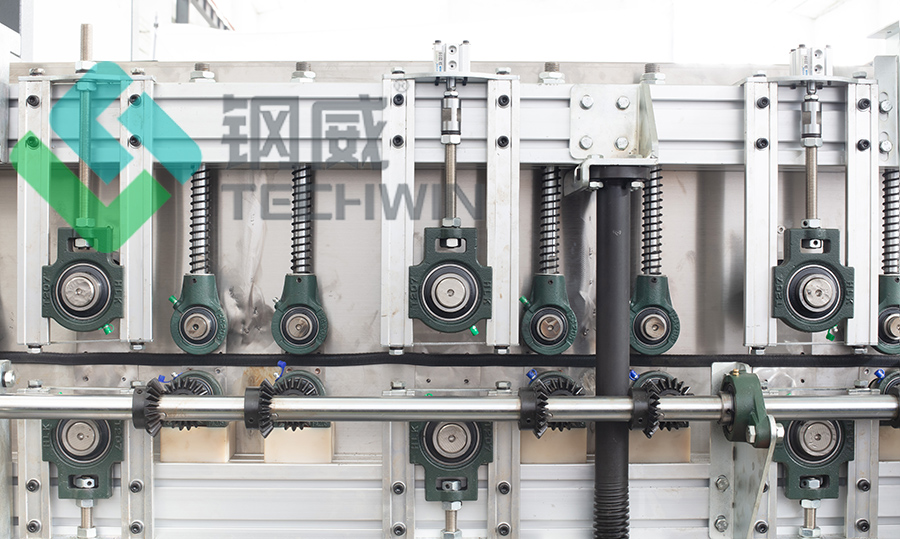

  • A0423 1
  • 42f
  • IMG 0140
  • Glass Washing Machine TWTC 2000P 3
  • Glass Washing Machine TWTC 2000P 4
  • A0423 1

Product Features:

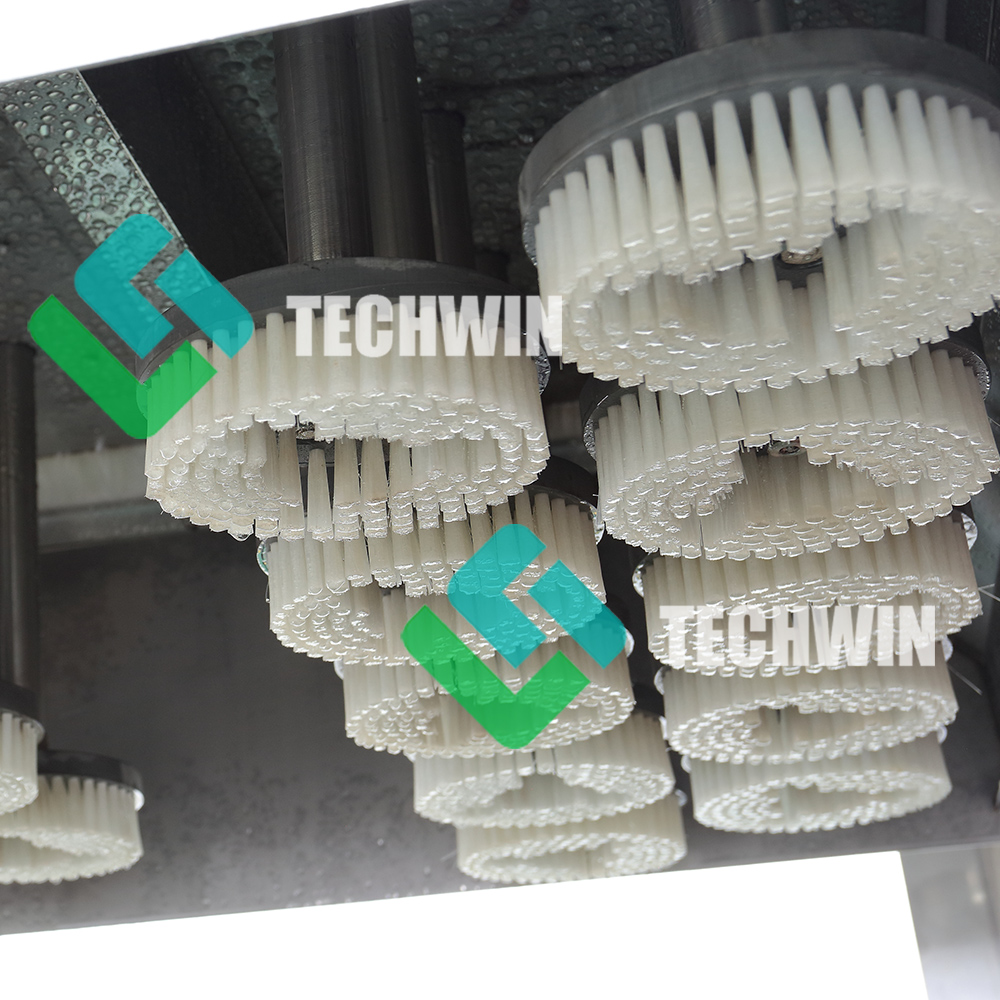

  • Polishing power can be used in disc brush washing zone.
  • Air knives will be set after disc brush zone to reduce dirty water goes to next zone.
  • Extended entry and exit.(Optional)
  • Drop down section for passageway.(Optional)
  • Universal wheels set on exit, glass can be unloaded from two sides.
  • Transparent covers on top of washing zone for daily inspection.
  • Side covers hang on the machine and can be taken down quickly.
  • Each brush tray is with separation to avoid water crossed contaminated.
  • Level sensors equipped in the tank with alarm lighting and bell.
  • Each section is with separation to prevent that too much water goes in the other section.
  • Last rinsing section is set with sensor to provide DI water, DI water will be supplied only when glass passes to save water.

Technical Parameters

Max. Glass Size2000 mm or customized
Min. Glass Size400*400 mm
Glass Thickness3~25 mm
Working Speed0.6~8 M/MIN
Blower Power18.5KW
Disc brush1 bridge or customized
Roll brush3 pairs of customized
Water tank5 units
Water heater5 units
Air Knives2 pairs ( one is straight and one is slanted)
Table Height900±50 mm
