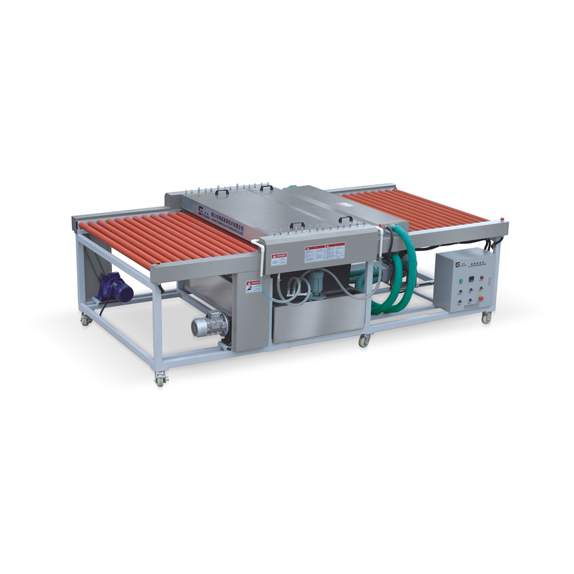

TWQX-1600A Glass washing machine

TWQX-1600A Glass washing machine

Washing machine dried by sponge rolls

  • Glass Washing Machine TWQX 1600A 1
  • IMG 4642
  • IMG 4247
  • Glass Washing Machine TWQX 1600A 1
  • IMG 4642
  • IMG 4247

Product Features:

  • Strong welded construction with stainless steel cover. All parts that in contact with water are in stainless steel.

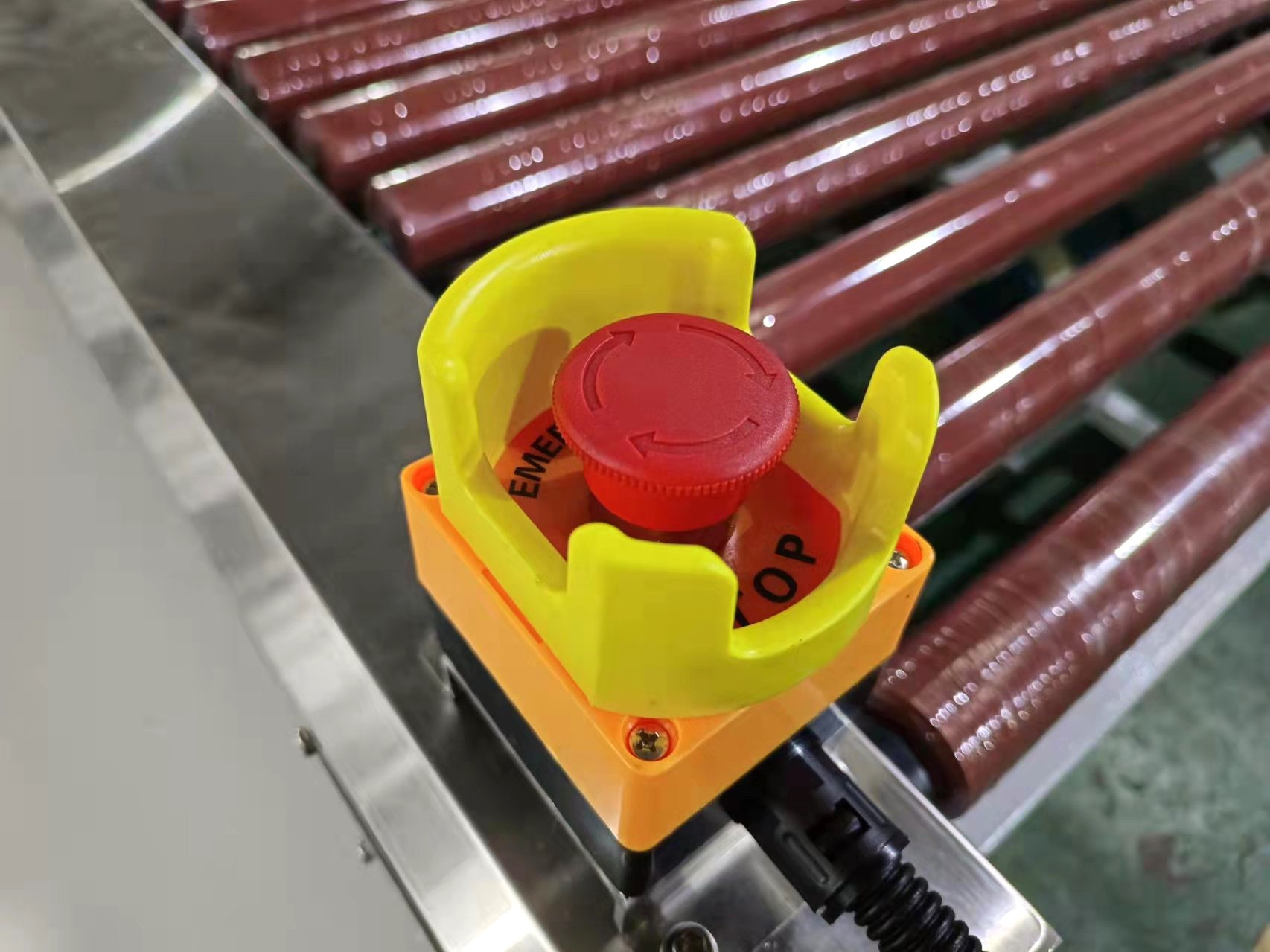

  • Emergency buttons on loading and unloading tables. Light on unloading table to inspect the glass.
  • 45MM rubberized vulcanized and rectified conveyor rollers.

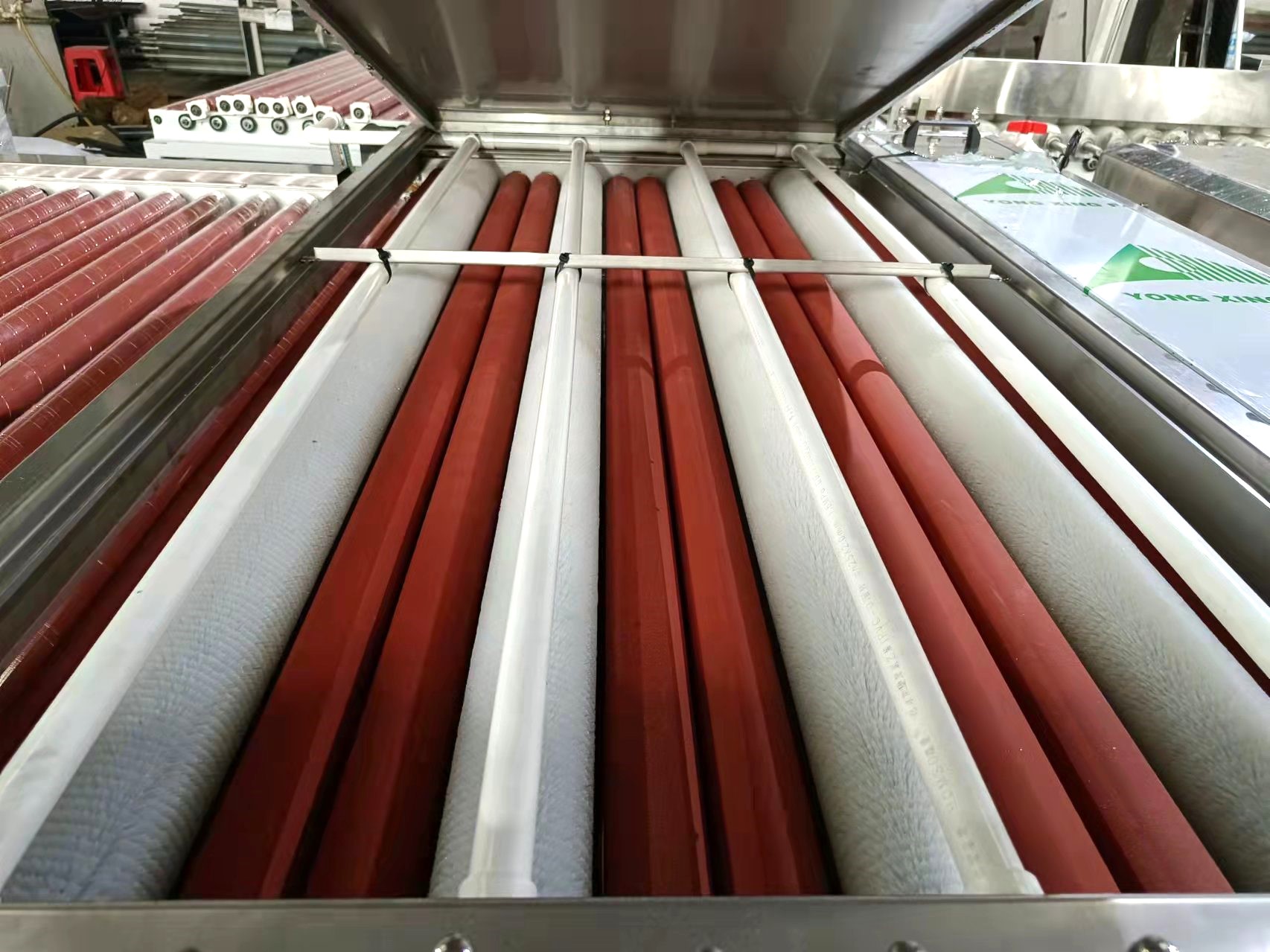

  • Washing by 4 pairs of brushes.

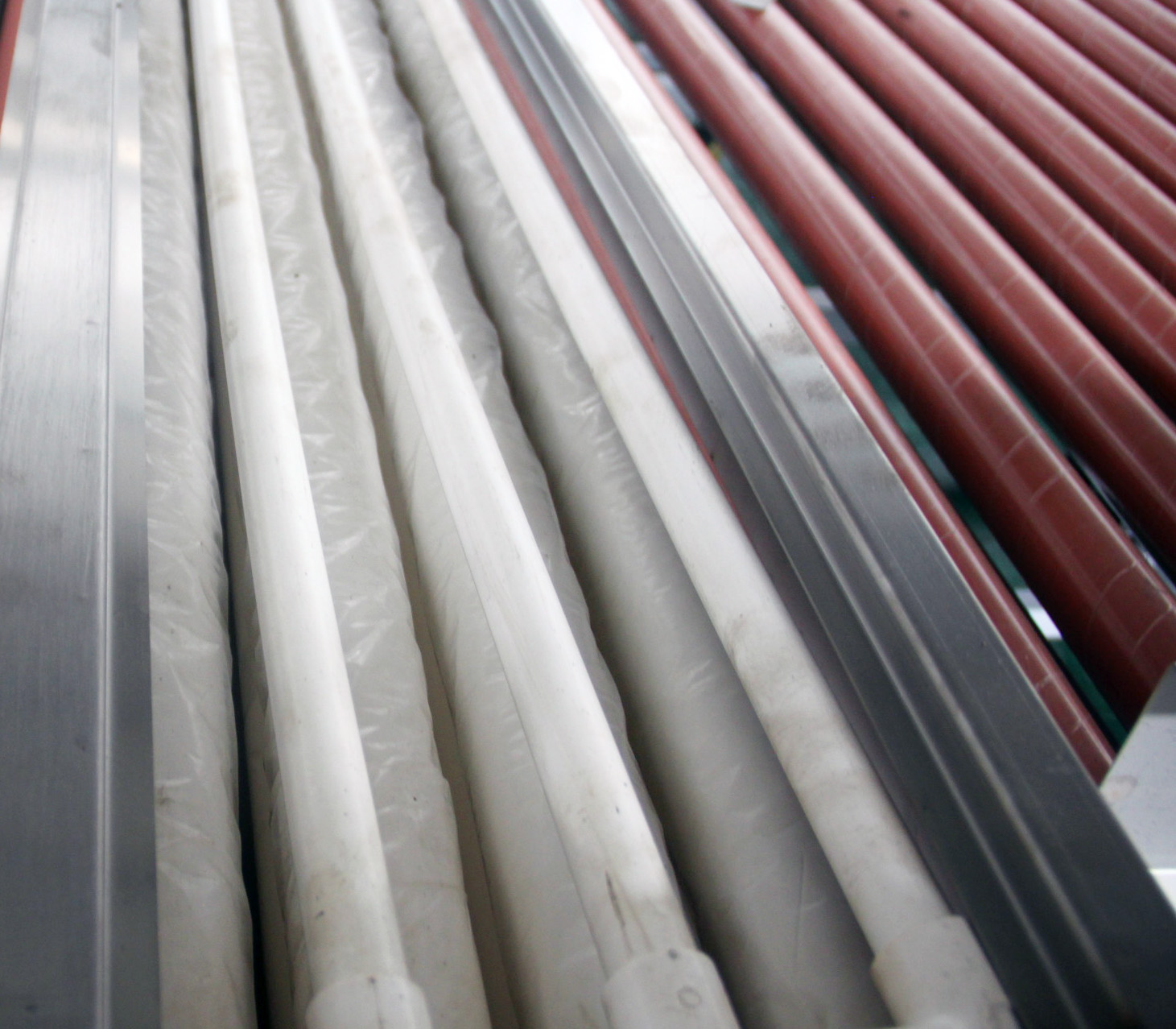

  • 4 pairs of sponge rollers and a blower in the drying section.
  • Water-cycling system with high-quality stainless steel water tanks for easy cleaning.

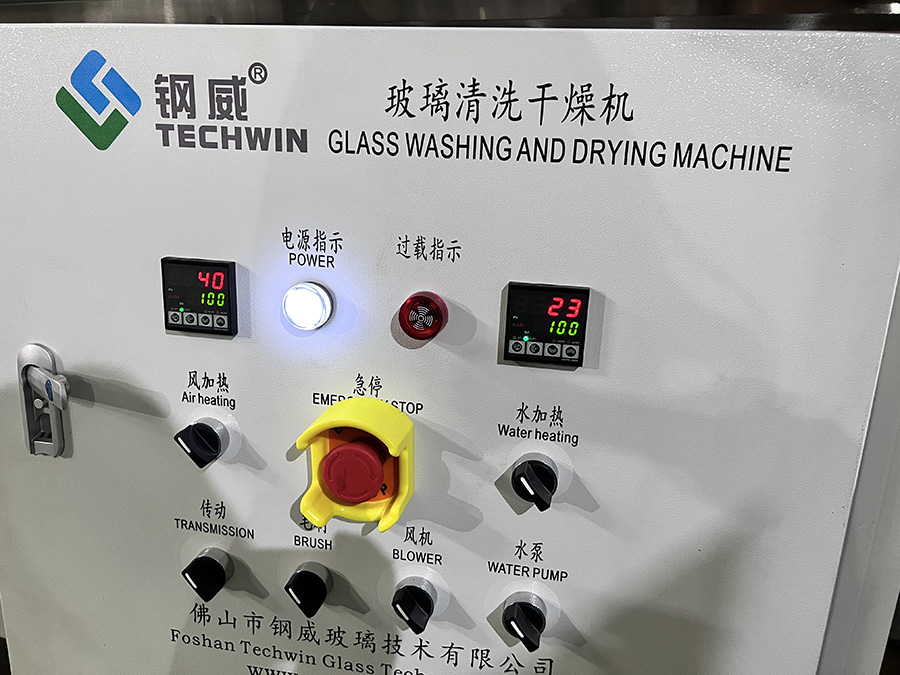

  • Motor, pump, transmission, and lighting can be controlled in the electrical panel.
  • Universal wheels are equipped for convenient movement.

Technical Parameters

Max. Glass Size800mm/ 1200mm/ 1600 mm
Min. Glass Size230*230 mm
Glass Thickness3~12 mm
Working Speed0.6~6 M/MIN
Total Power13 KW
Brush4 pairs
Sponge4 pairs
Water Tank1 unit
