TWQX-2500G-2 Glass washing machine

TWQX-2500G-2 Glass washing machine

Glass washer used separately or with edging machine



Product Features:

  • Llong and tough enough for heavy architectural glass.
  • Machine shield and all parts of the machine that are in contact with water are in stainless steel.

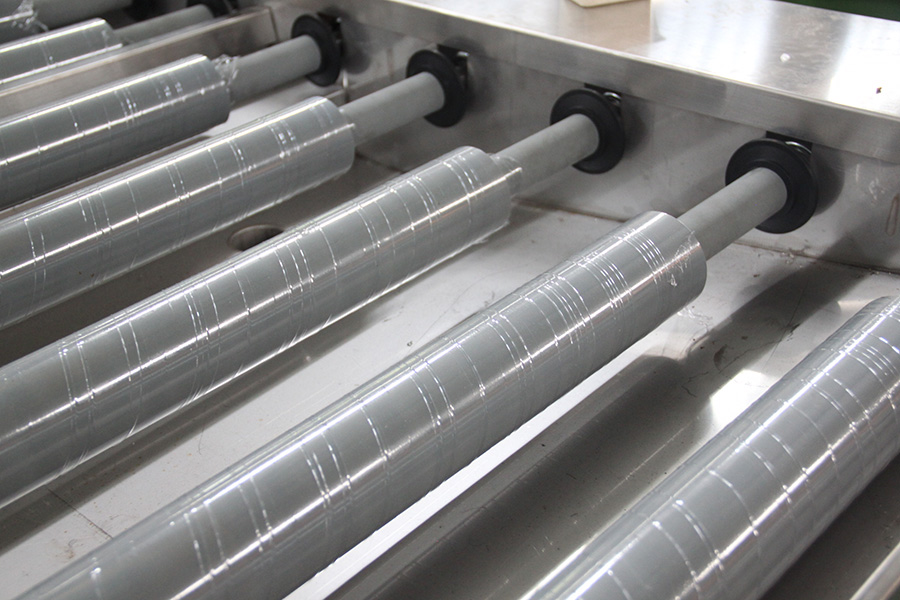

  • 80mm rubberized vulcanized and rectified conveyor rollers.

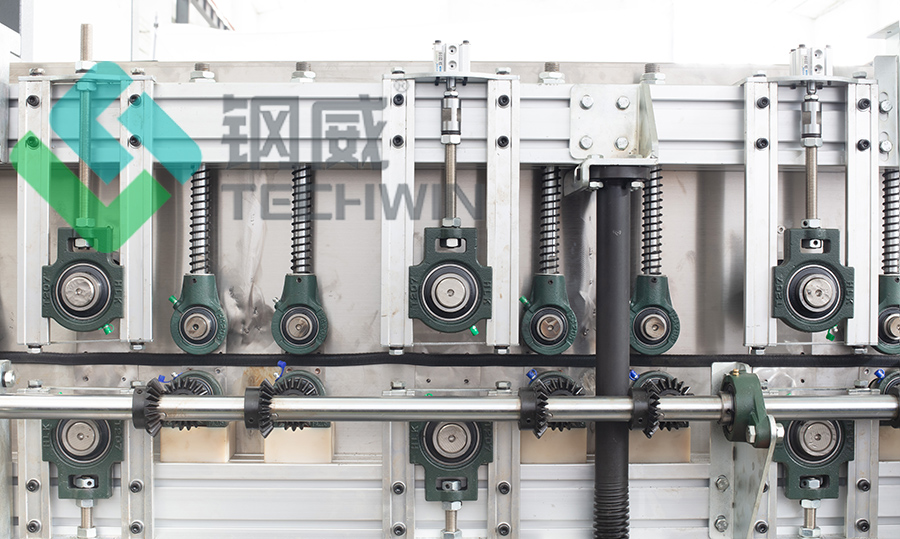

  • 45# black oxide bevel gears are adopted for steady and synchronous transmission.
  • Frequency speed control, rollers can move forward and reversely.
  • Economical water circulation systems, valves are set on the water tanks for water supplementation. Quick connect for easy cleaning.

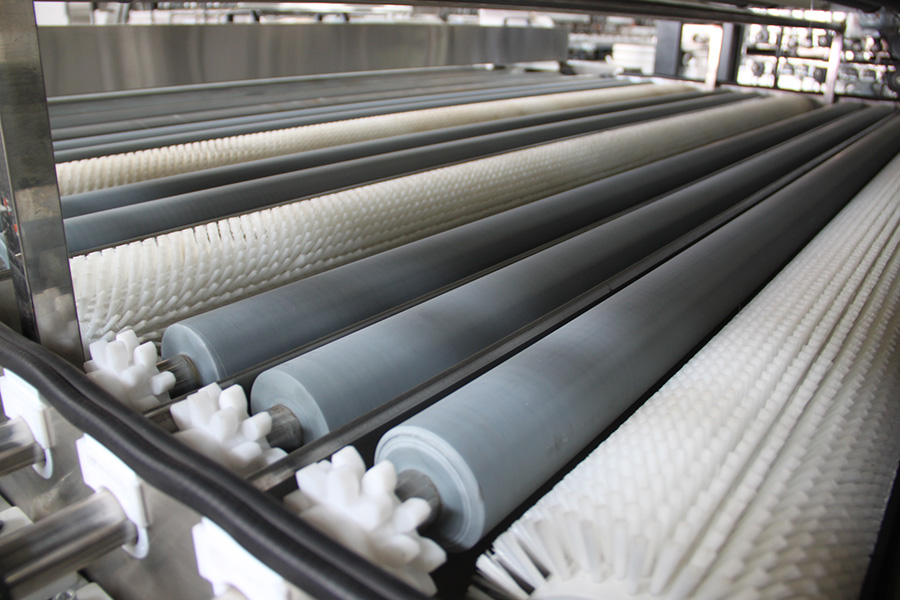

  • High-pressure spraying for pre-washing. Three pairs of cylindrical brushes and three separate water tanks with individual pumps attached.
  • Two pairs of cylindrical air knives. One is straight air knives and the other is inclined air knives.
  • Can wash the Low-E glass.
  • 2000/2500/3000/3300mm models are as available.

Technical Parameters

Max. Glass Size2500 mm
Min. Glass Size400*400 mm
Glass Thickness3~25 mm
Working Speed0.6~10 M/MIN
Blower Power18.5KW
Total Power43 KW
Brush3( 1 is soft brushes for Low-E glass) pairs
Water Tank3 units
Water heater power6KW *3
Air Knives2 pairs ( one is straight and one is slanted)
Table Height900±50 mm
