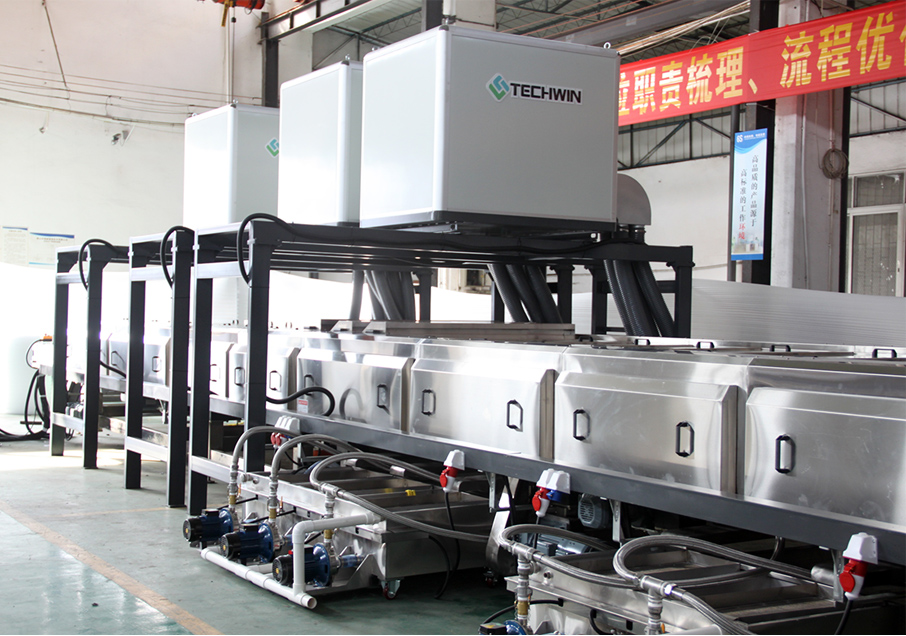

Washing machine for solar or electronic glass
Glass washing machine for washing with extremely high requirements
Product Features:
- Steel and aluminum chassis.
- Rubber rollers with high evenness. It can wash glass thickness from 1.3mm to 40mm.
- Excellent water proof system.
- Tooth belts are used to drive the brushes.

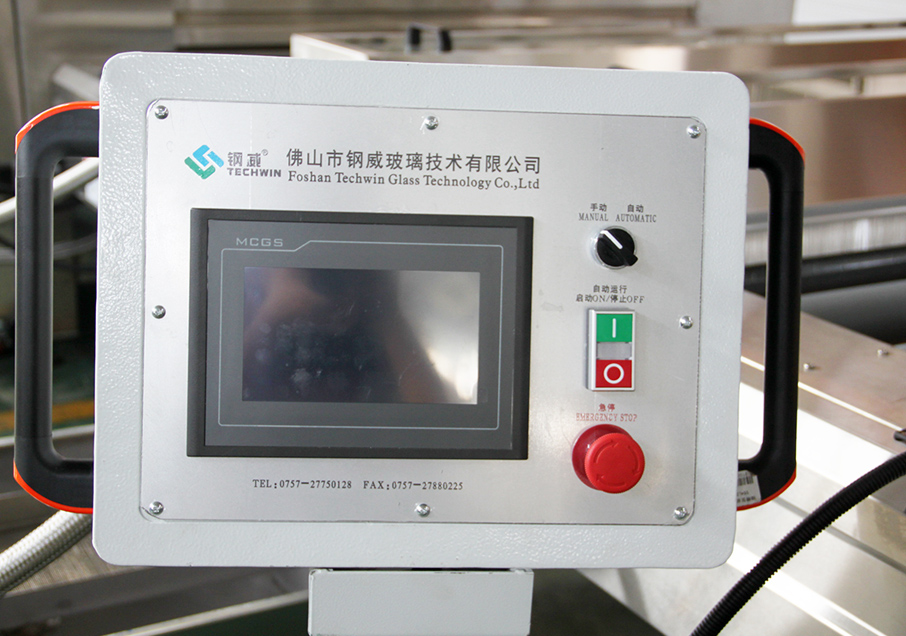

- PLC and touch screen can be equipped for synchronous speed and thickness.
- Side covers hang on and easy to take down.
- Transparent covers on the top for easy inspection of machine running.
- Nylon wheel gears for self-lubrication.(Optional)
- Water pipes inside the machine has quick connect function.
- It can wash Low-E glass.
Technical Parameters
| Max. Glass Size | 2000 mm or customized |
| Min. Glass Size | 400*400 mm |
| Glass Thickness | 3～25 mm |
| Working Speed | 0.6～8 M/MIN |
| Blower Power | 18.5KW |
| Total Power | 45 KW |
| Brush | 3 pairs |
| Water Tank | 3 units |
| Water heater power | 6KW *3 |
| Air Knives | 2 pairs ( one is straight and one is slanted) |
| Table Height | 900±50 mm |
