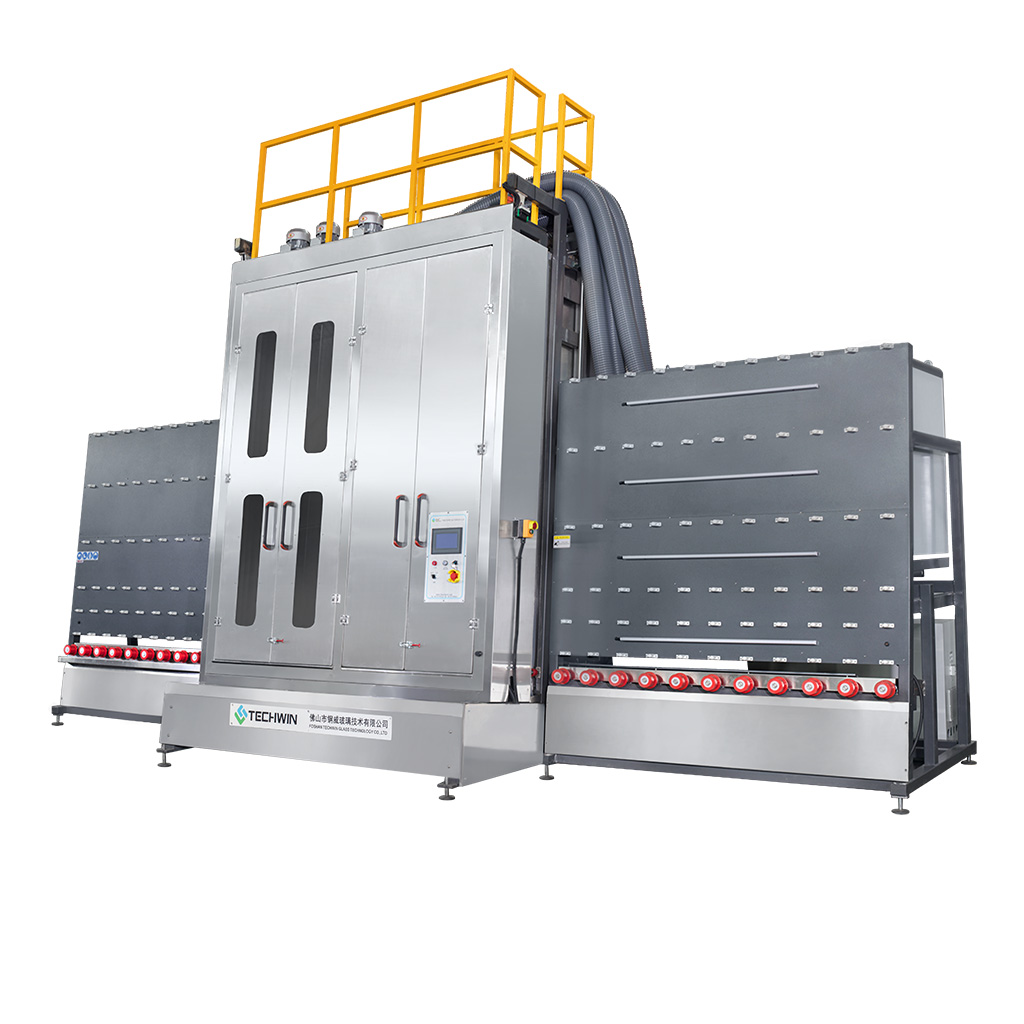

Heavy duty vertical glass washing machine

Heavy duty vertical glass washing machine

Vertical washer for 1600/2000/2500/3000mm high glass

Product Features:

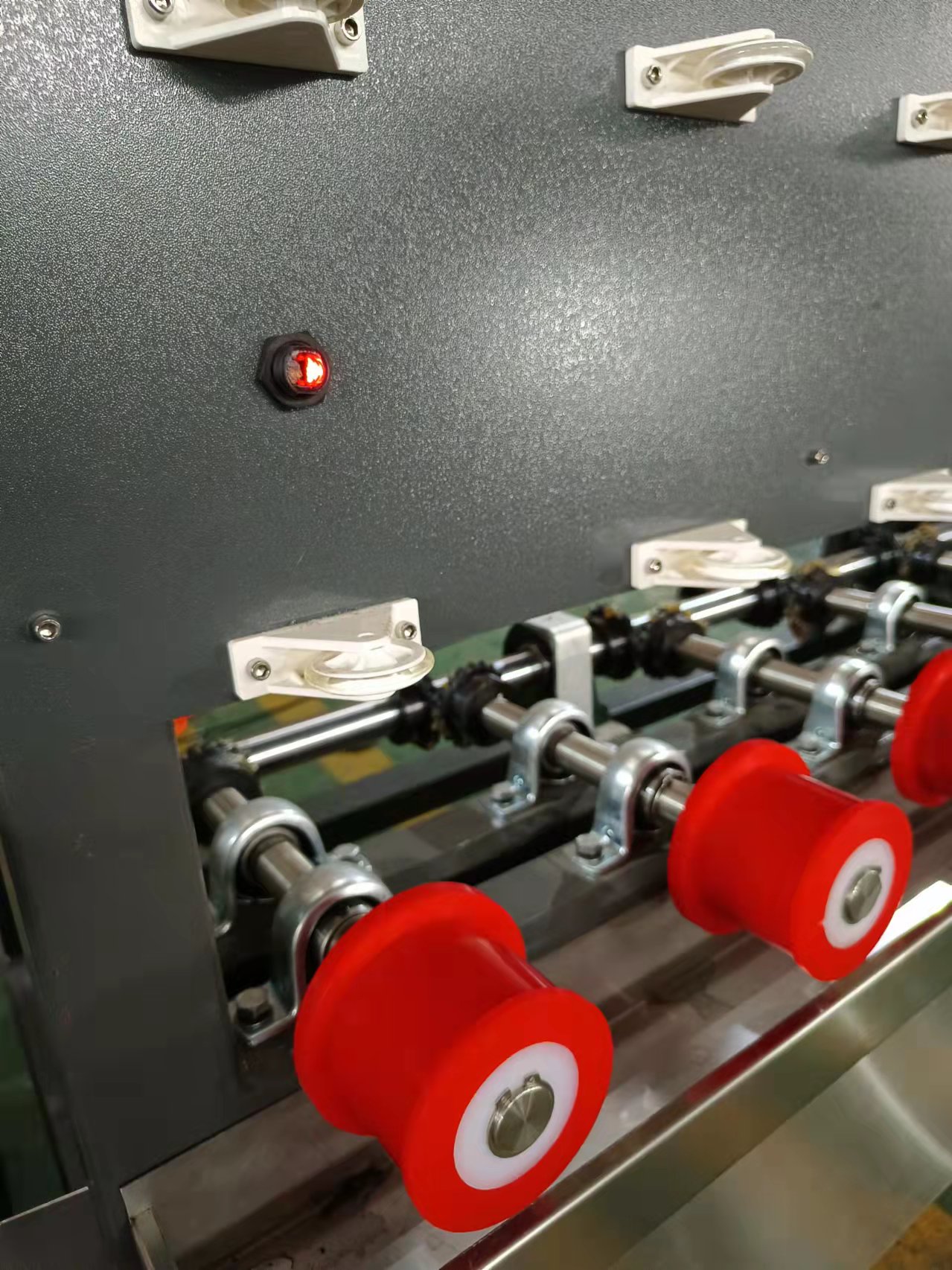

  • Big supporting wheels for heavy glass.

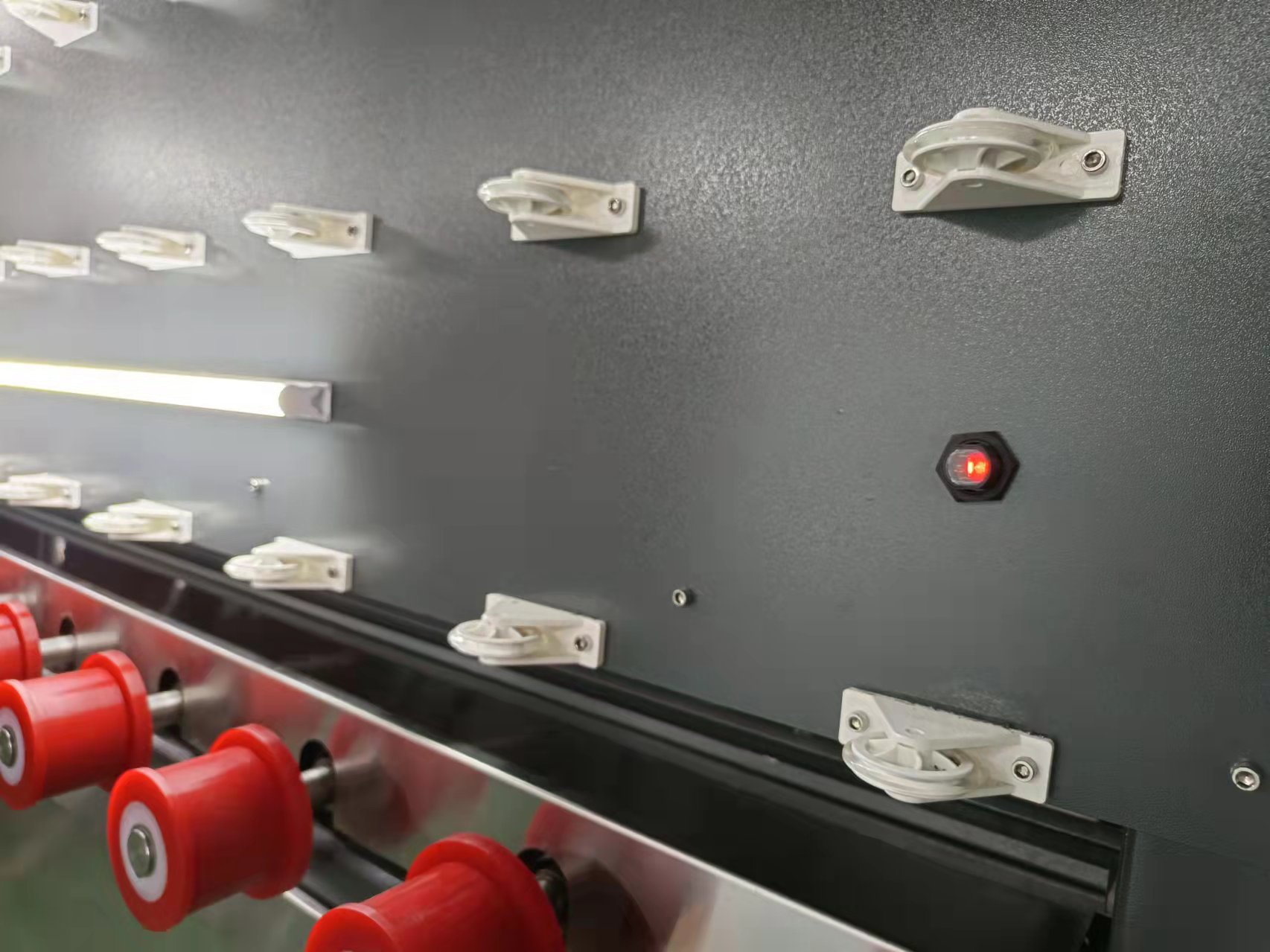

  • Aluminum wheel seats in loading and unloading zone to avoid rust.
  • Silicone strips set on loading and unloading zone for water proof and reduce the noise.
  • Heaters equipped in the tank, water temperature can be adjusted.
  • Two pairs of slanted air knives with a blower. Soft brush for Low-E glass.
  • This washer can use with straight line edging machine or vertical drilling machine.
  • Washing and drying zone of the washer can open to max. 200mm for easy daily cleaning.

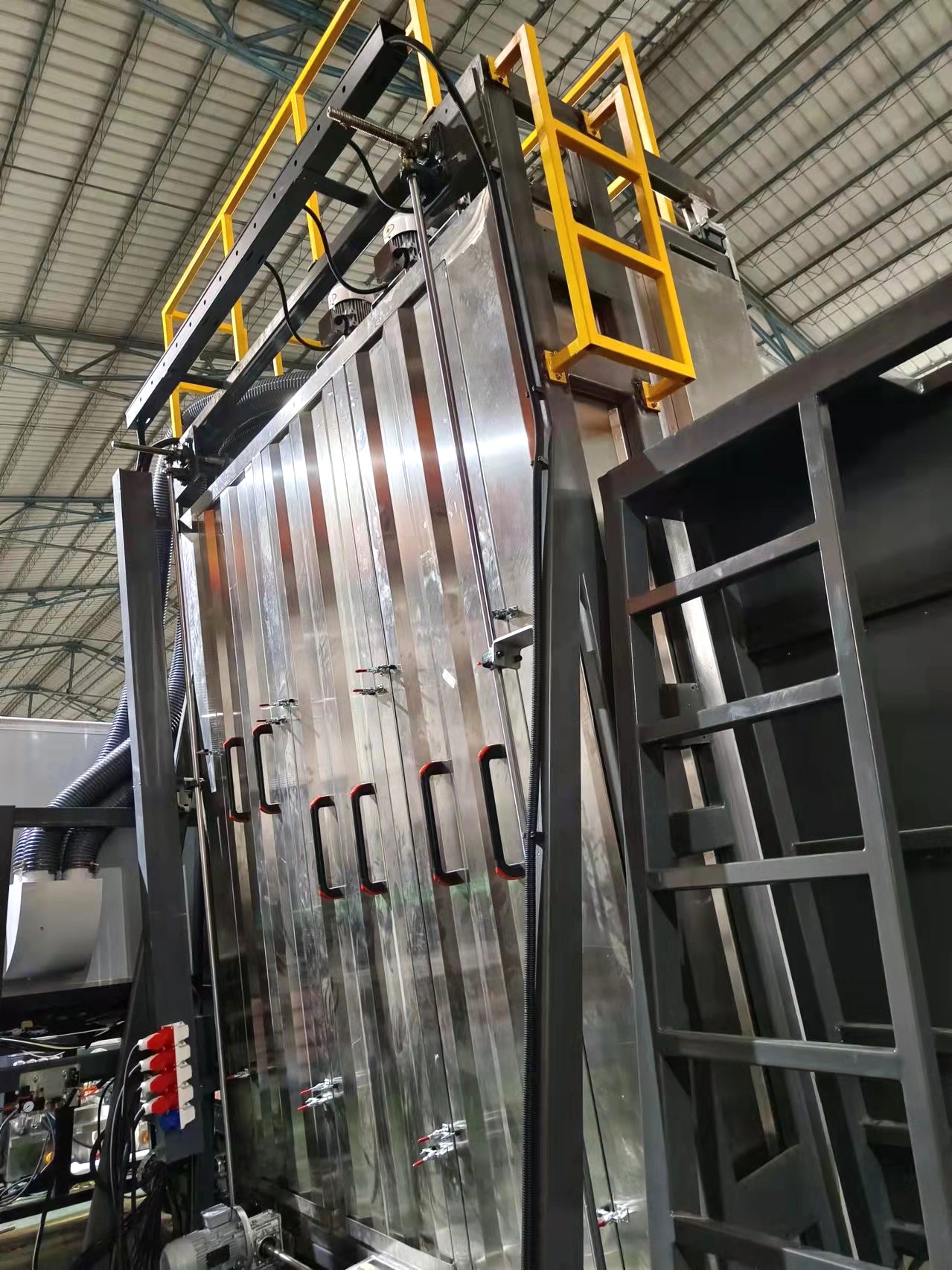

  • Stairs and frame equipped for safety daily maintenance.
  • Safety doors are as option: when operator opens the door, the machine will stop automatically.

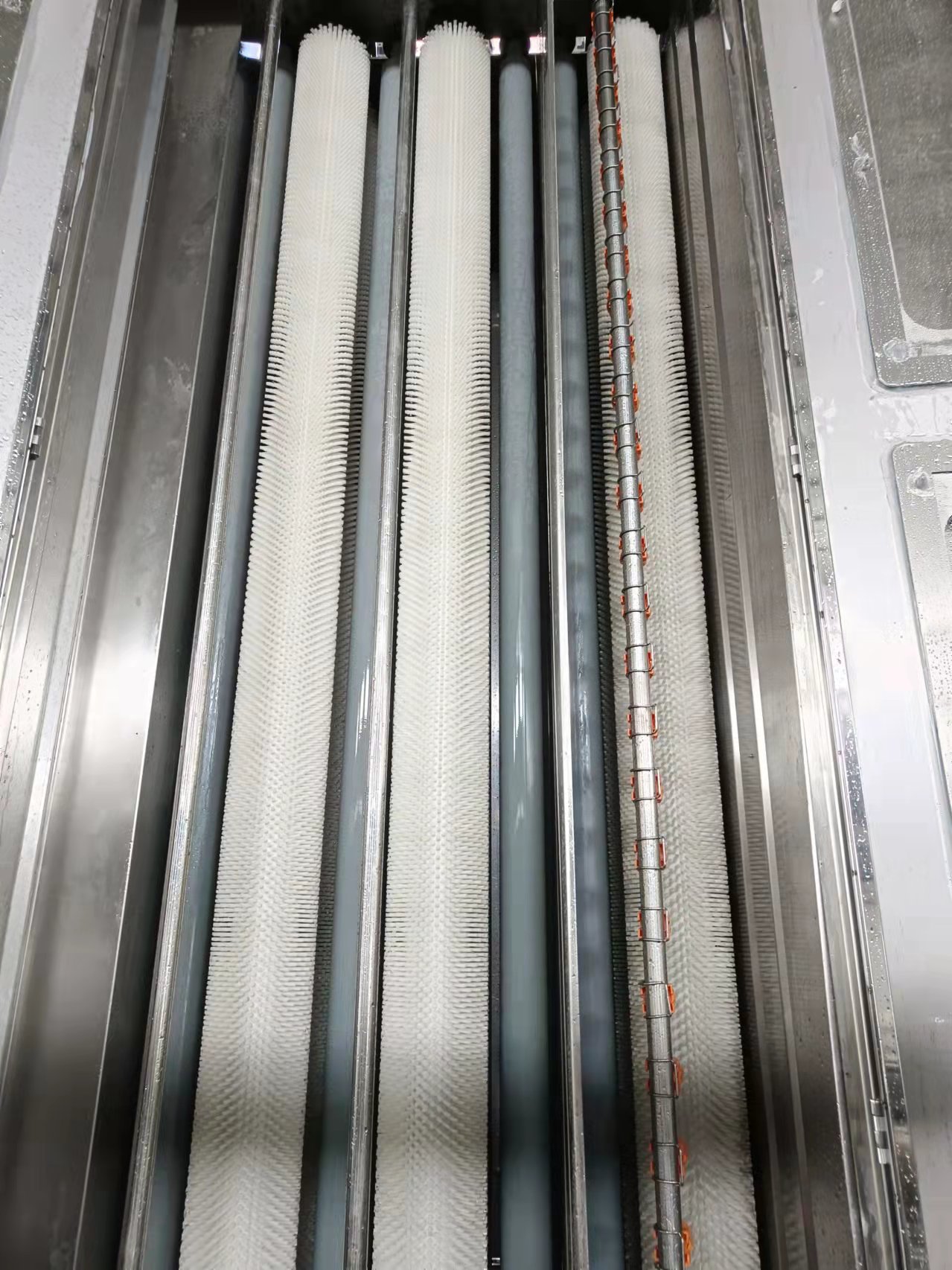

  • One motor to drive one brush, there are six motors for brushes totally.

Technical Parameters

Max. Glass Size1600/2000 /2500/3000mm
Min. Glass Size400*400 mm
Glass Thickness3~19 mm
Working Speed0.6~7 M/MIN
Blower Power11/15/18.5KW
Total Power42/46/49 KW
Brush3( 1 is soft brushes for Low-E glass) pairs
Water Tank2 units
Water heater power6KW *2
Air Knives2 pairs
